Flame resistant silicone rubber radiation shielding material is compliant with ROHS Lead Free Directive.

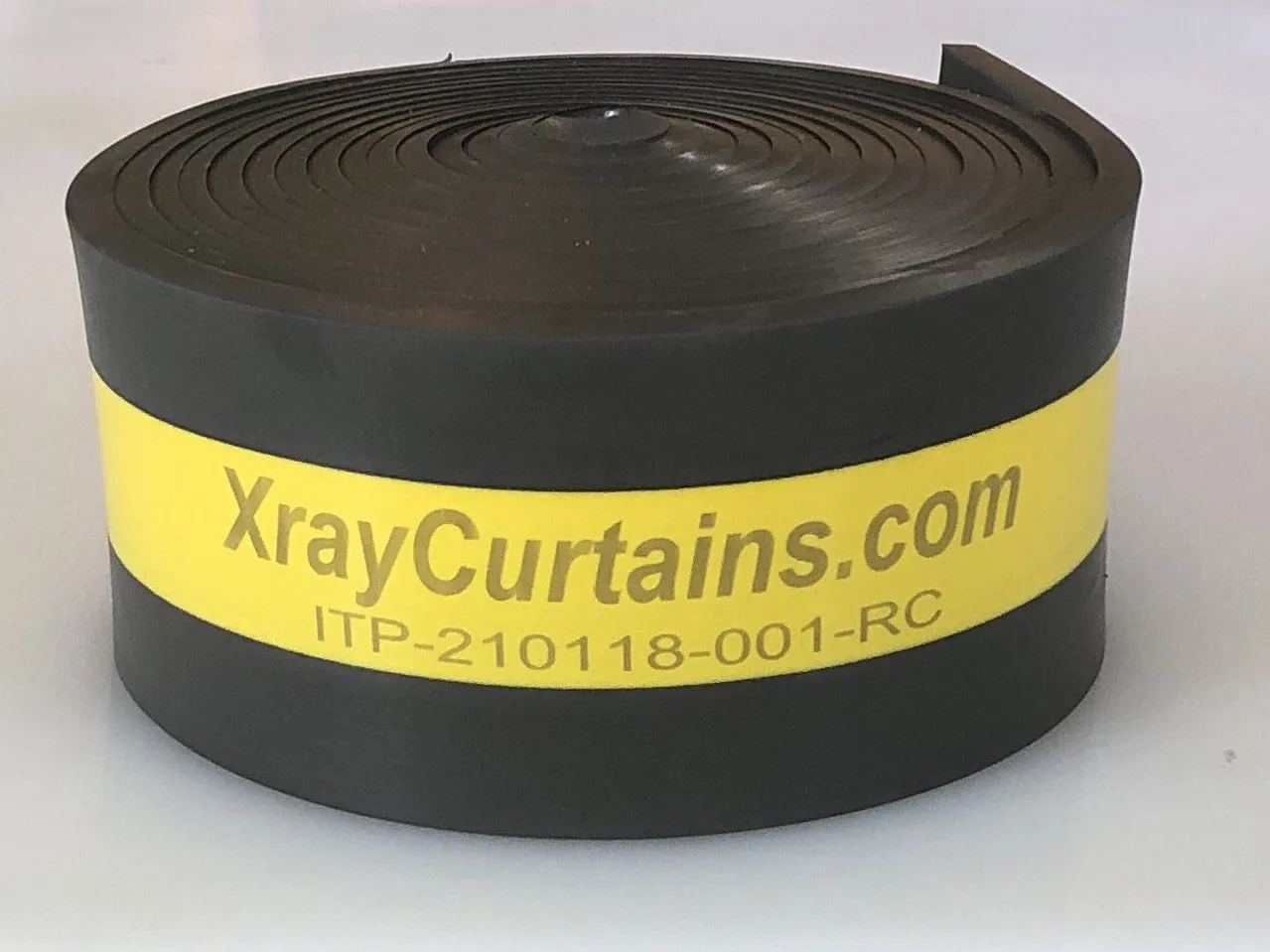

Lead-free radiation shielding material for wrapping industrial piping and equipment to protect against radiation. Designed for use where flame resistant, environmentally friendly shielding is required. Silicone rubber core for improved strength. Applications include Nuclear and NDT shielding.
Physical Properties
| Product SKU | XRC501SNB002 | XRC501SNB004 |
| Lead equivalence | 2.0 mm (2) | 4.0 mm (3) |
| Composition | Silicone Rubber | Silicone Rubber |
| Color | Black | Black |
| Thickness | 3.2 mm (1/8”) | 6.4 mm (1/4”) |
| Weight | 22 kg/m2 | 44 kg/m2 |
| Hardness | 25 /- 5 Shore A | 25 /- 5 Shore A |
| Tensile strength (min.) | 200 N / 50 mm | 400 N / 50 mm |
| Elongation at Break | 400% | 400% |
(1) Rated as Class A Material under ASTM E40 10b Flammability Test
Passed NFPA 701 (2010) Test 2 Flammability
(2) Tested at 2.3mm PbEq for 60Co & 2.1mm PbEq for 137Cs
(3) Tested at 4.6mm PbEq for 60Co & 4.2mmPbEq for 137Cs
Lead-Free Certification
This product is compliant with Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 for Restrictions of Hazardous Substances (RoHS) and that the maximum concentration values by weight for lead, hexavalent chromium, cadmium, mercury, polybrominated biphenyls and polybrominated diphenylethers are in compliance.
